LG Refrigerator Water Filter Would Not Install in Dublin: Filter Head Replacement

Location: Dublin, CA

Appliance: LG French-door refrigerator, model LFXS26596S/10, serial 110KRPV2K624

Model: LFXS26596S/10; serial 110KRPV2K624

Replacement part used: LG refrigerator filter head assembly AKN72949003. The supplier inventory label on the package is LF5241082.

Customer complaint: A new water filter would not insert or lock into the refrigerator's filter housing.

Diagnosis: The filter head mechanism was damaged. Attempts to force the replacement filter into place had also damaged the surrounding plastic, so replacing only the filter would not solve the problem.

Repair completed: We ordered the correct filter head by the complete refrigerator model, returned the next day, removed the damaged assembly and water tubes, installed the new insulated filter head, and restored every connection.

Result: The water filter installed and locked correctly. We dispensed water and inspected the front and rear connections; no leaks were found.

LG refrigerator water filter would not install in Dublin

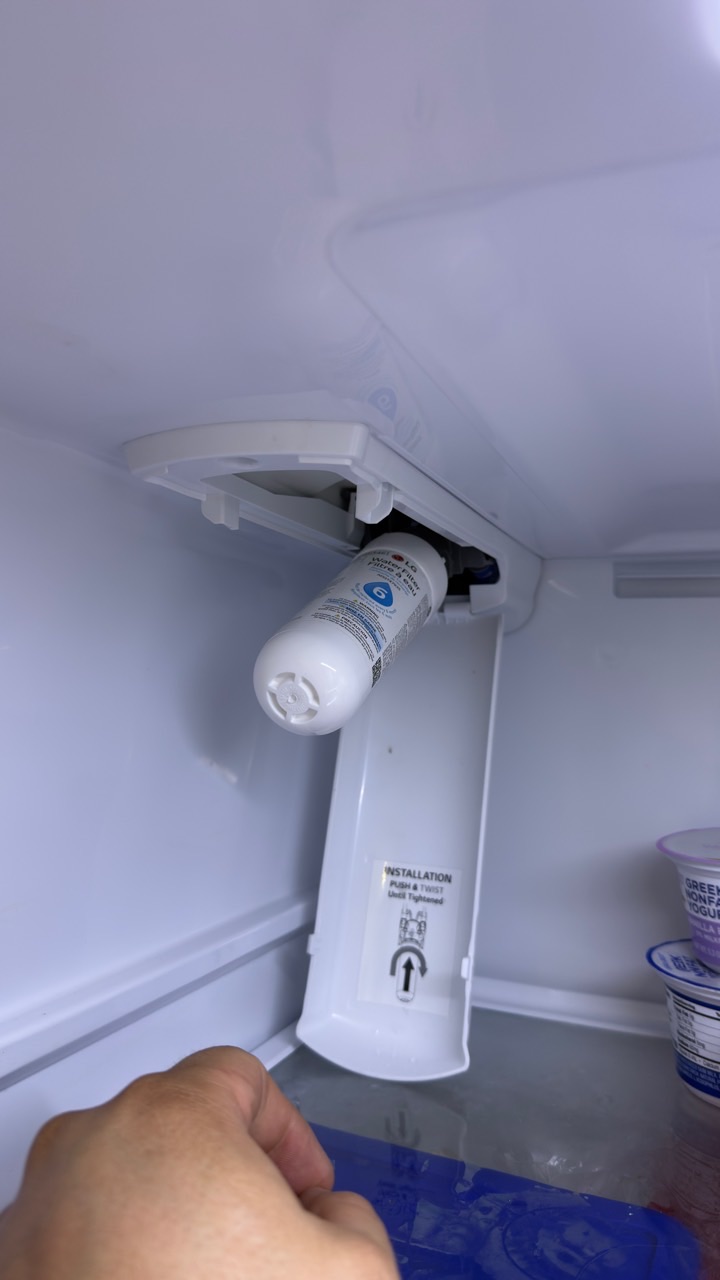

The customer in Dublin had a new refrigerator water filter but could not insert it into the housing. During diagnosis, we confirmed that the filter itself was not the main problem. The plastic locking mechanism inside the filter head had failed, preventing the cartridge from seating and turning into its operating position.

A water filter should engage with firm, controlled pressure. If the cartridge does not align or lock, forcing it can break the filter head, damage the surrounding plastic, or create a leak at the water-line connections. The correct next step is to inspect the cartridge, filter head, and model compatibility before applying more force.

Why the complete filter head had to be replaced

The filter head holds the water-filter cartridge, provides the locking interface, and connects the filter to the refrigerator's water tubing. Once the internal plastic mechanism is damaged, installing another cartridge does not restore a reliable seal or proper alignment.

For this refrigerator, the appropriate repair was replacement of the complete filter head assembly rather than forcing the new filter or attempting to repair the damaged plastic. The replacement was selected using the full model suffix, LFXS26596S/10, to avoid ordering a visually similar but incompatible assembly.

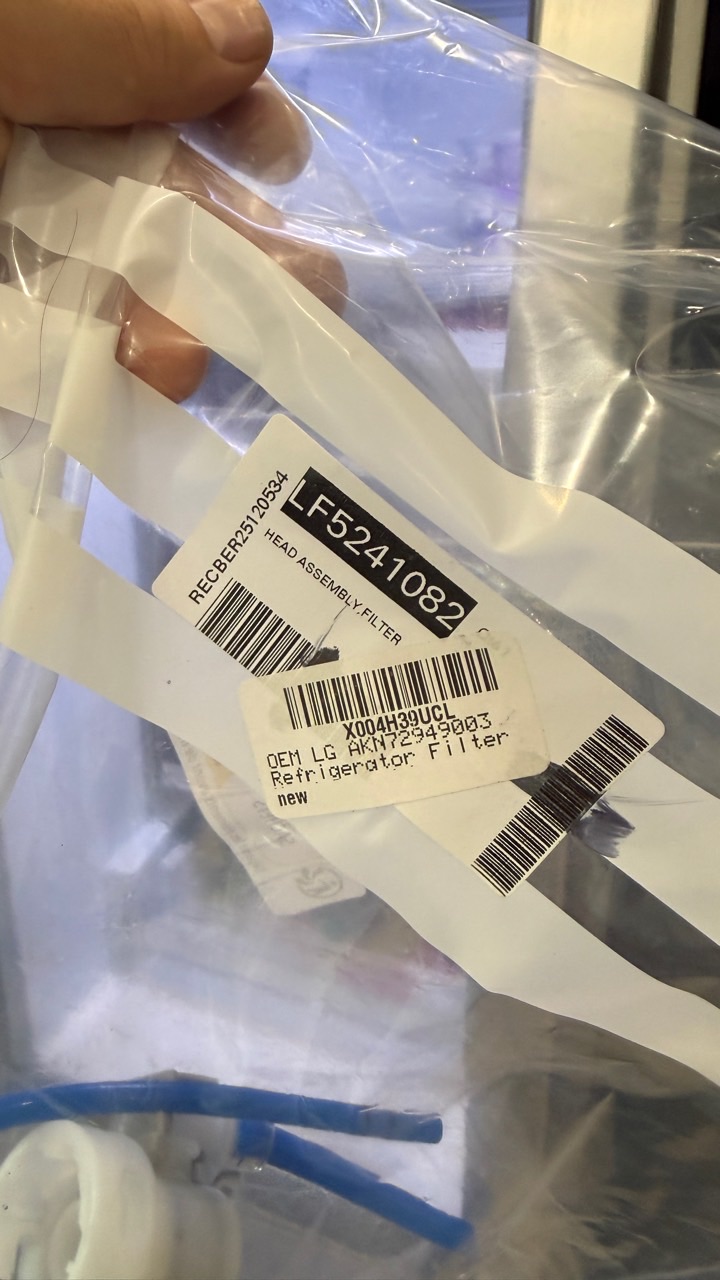

LG filter head AKN72949003

The replacement package identifies the component as LG filter head assembly AKN72949003. A separate supplier inventory label shows LF5241082. The OEM number is the important service identifier for the installed assembly.

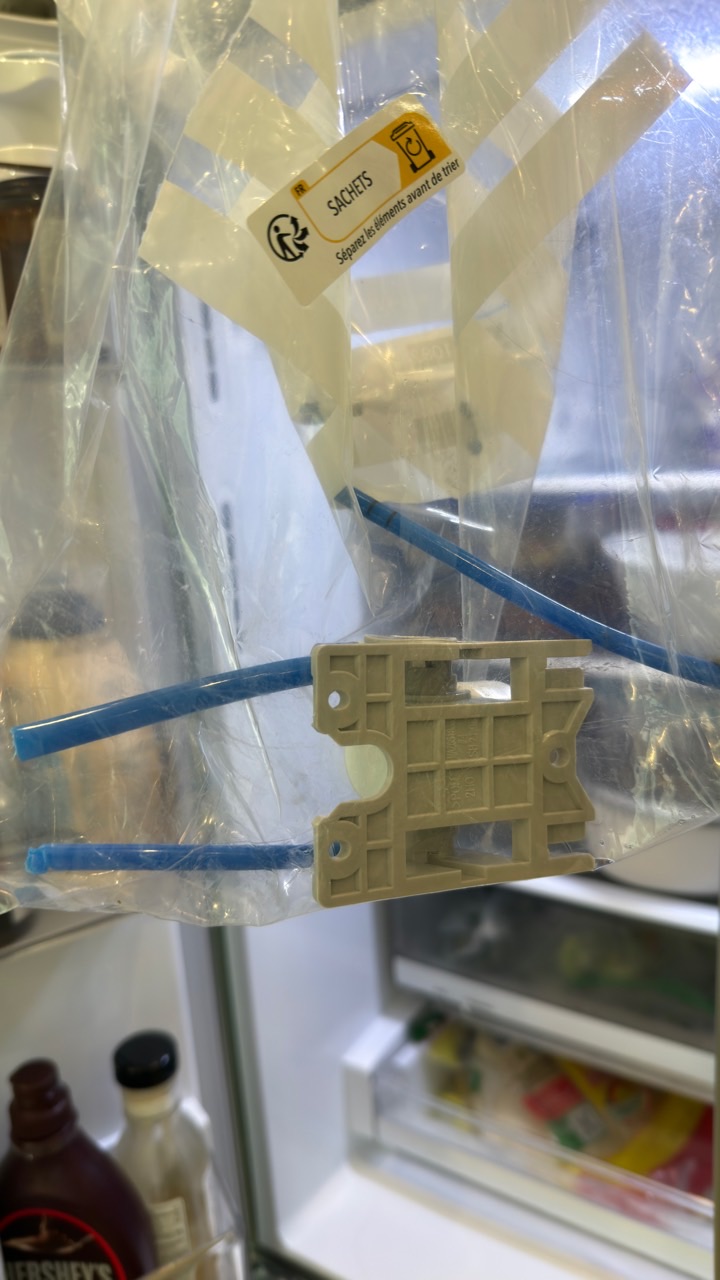

This assembly includes the filter-head body and connected water tubes. Those lines must be routed and secured correctly so the new head can hold the cartridge and remain watertight when water is dispensed.

How we replaced the refrigerator filter housing

Access began inside the fresh-food compartment by removing the retaining screw and releasing the filter-head cover. We then moved the refrigerator forward to reach the rear water connections safely.

At the back, the filter-head tubing was disconnected from the water-valve circuit and the retaining clips were removed. The complete filter head and tubing were pulled through the cabinet. We transferred the required insulation around the assembly, installed the new filter head, routed both tubes without kinks, restored the clips and valve connections, and reassembled the interior cover.

The replacement and testing took approximately 30 minutes. This type of repair should not be rushed because a tube that is not fully seated can leak after the refrigerator is returned to its normal position.

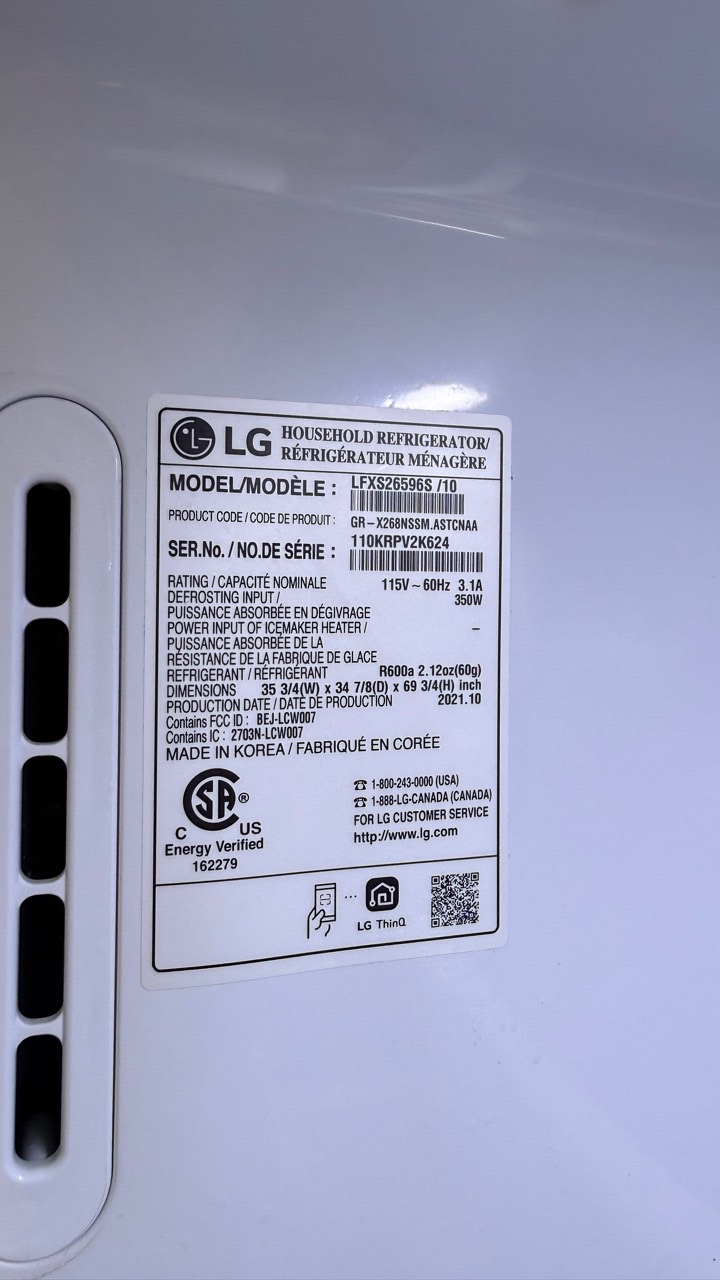

LG LFXS26596S model information

The appliance data label identifies this refrigerator as LG model LFXS26596S/10, serial 110KRPV2K624. Recording the complete model and revision is essential before ordering water-system parts because component changes can occur between production versions.

Final water leak test

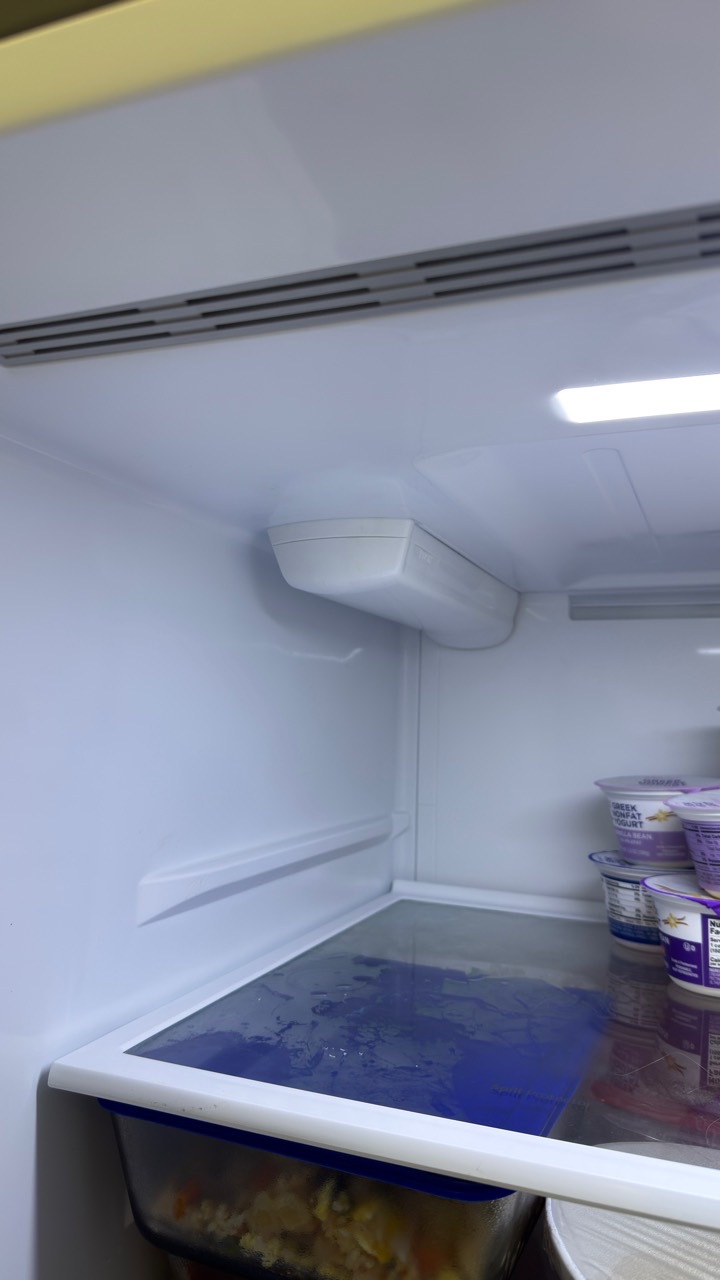

After installation, the new filter was inserted and locked normally. We dispensed multiple glasses of water to pressurize and flush the filter circuit, then inspected the filter head, the interior area, both rear tubing connections, and the water valve.

No water appeared at the front or rear of the refrigerator. The new filter remained secure, the dispenser operated correctly, and the appliance was returned to normal use.
