Thermador Built-In Microwave Sparking in Alamo: Magnetron Replaced

Location: Alamo, CA 94507

Appliance: Thermador built-in microwave, model MB30WP/01, FD 9909, appliance identification number 014737

Replacement part used: Complete magnetron. The failed component was marked Toshiba 2M303H. The replacement component was marked LG 2M286 / EAS42812914. A separate Thermador service part number was not visible in the supplied photos.

Customer complaint: The built-in microwave was not operating correctly and produced visible electrical sparking inside the cooking cavity.

Diagnosis: Inspection found a failed magnetron with a visibly burned antenna cap. The damaged magnetron was the source of the sparking and required complete replacement.

Repair completed: We ordered the compatible magnetron, returned the next day, carefully removed the built-in microwave from its cabinet, disassembled the appliance, replaced the magnetron, reassembled the unit, and reinstalled it in the cabinet.

Result: The microwave completed its final operating test without sparking and heated normally. The appliance was returned to service.

Thermador microwave sparking diagnosis in Alamo

A customer in Alamo contacted us because a Thermador built-in microwave was sparking and could no longer be used safely. Sparking inside a microwave can be caused by several issues, so the appliance needed to be removed from service and inspected before further operation.

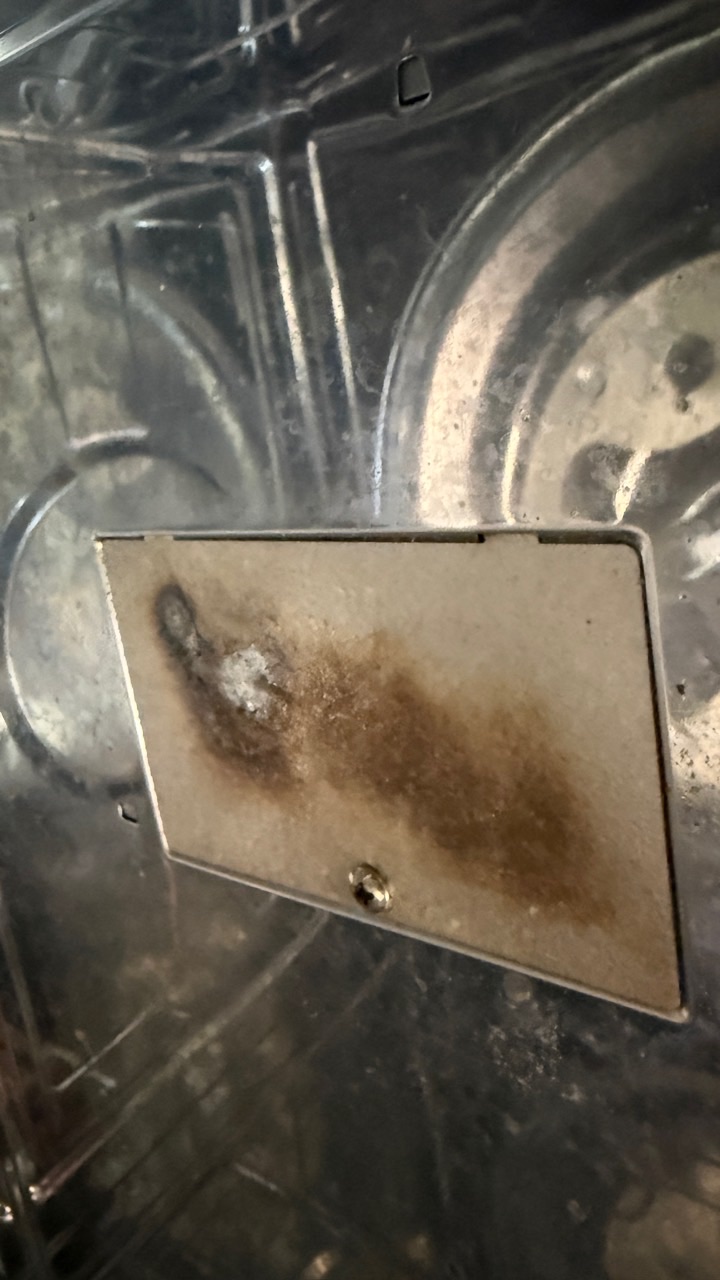

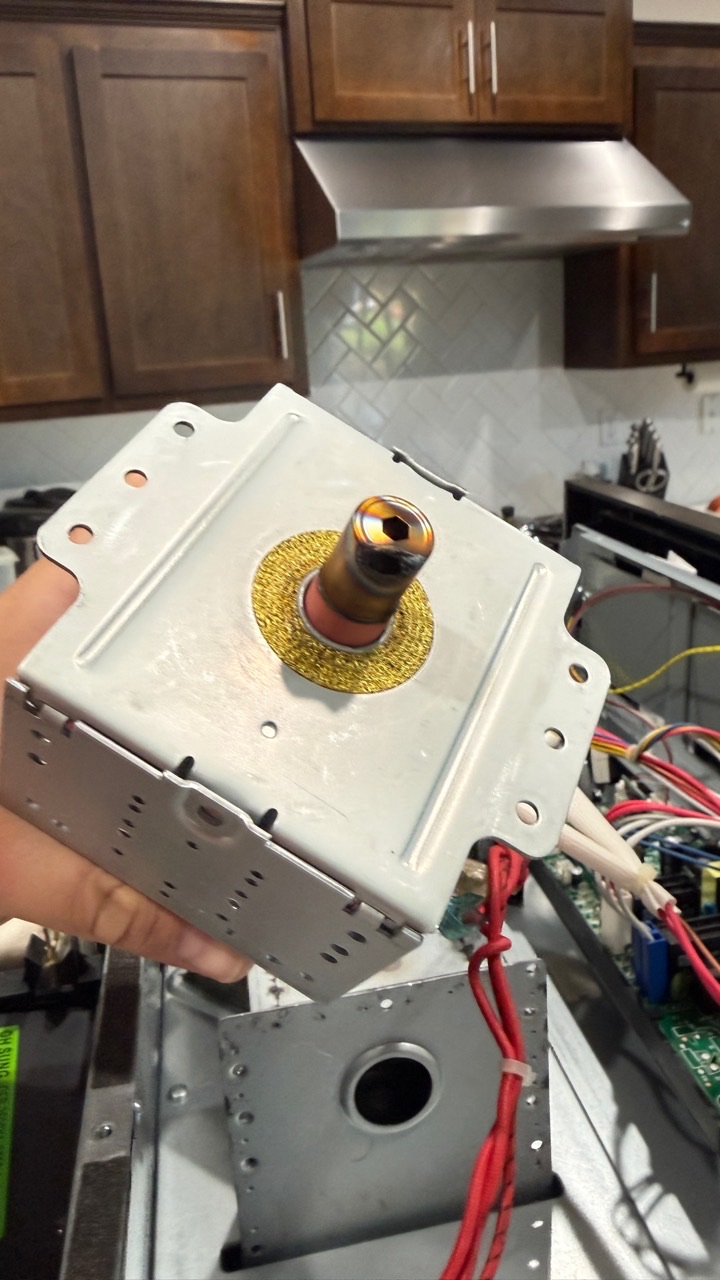

During diagnosis, we identified clear heat damage at the magnetron antenna cap. This is the portion of the magnetron that transfers microwave energy into the waveguide. Because the cap and magnetron assembly were burned, replacing only a cosmetic cavity component would not correct the underlying failure.

Failed Toshiba 2M303H magnetron

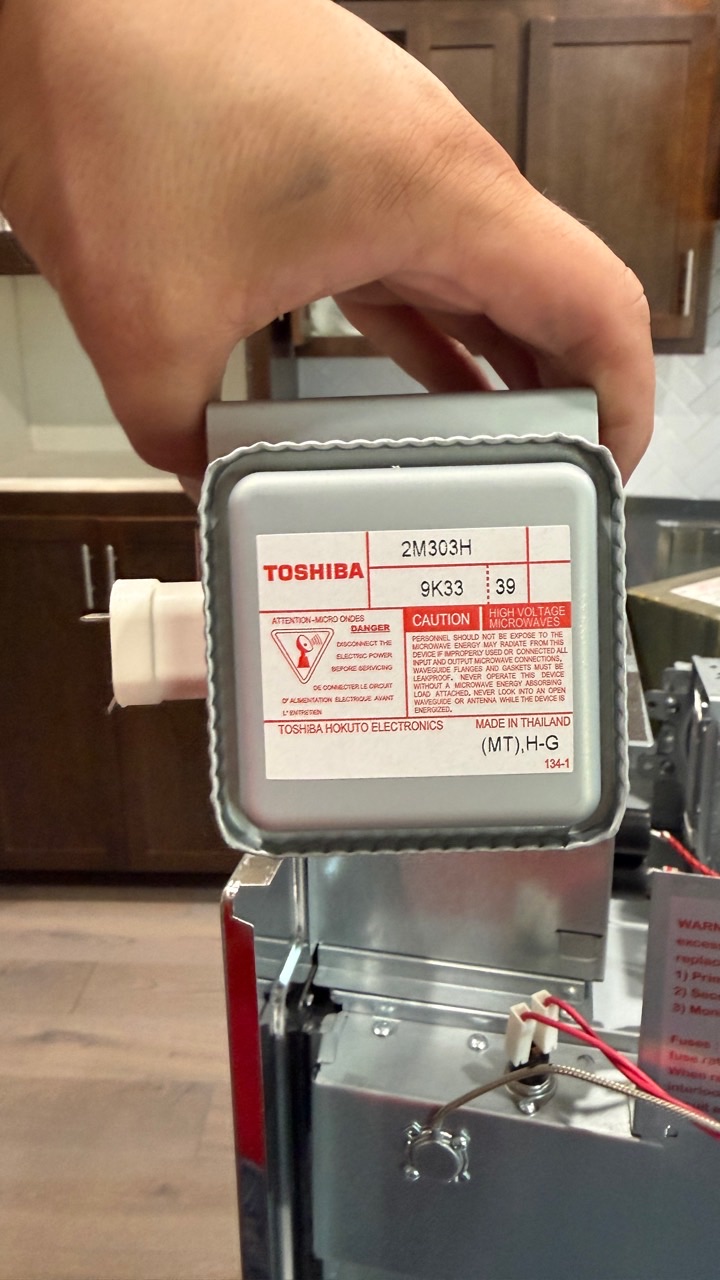

The original failed magnetron carries the marking Toshiba 2M303H. The burned antenna cap is visible in the repair photos and confirms that the complete magnetron assembly needed to be replaced.

Built-in microwave removal and magnetron replacement

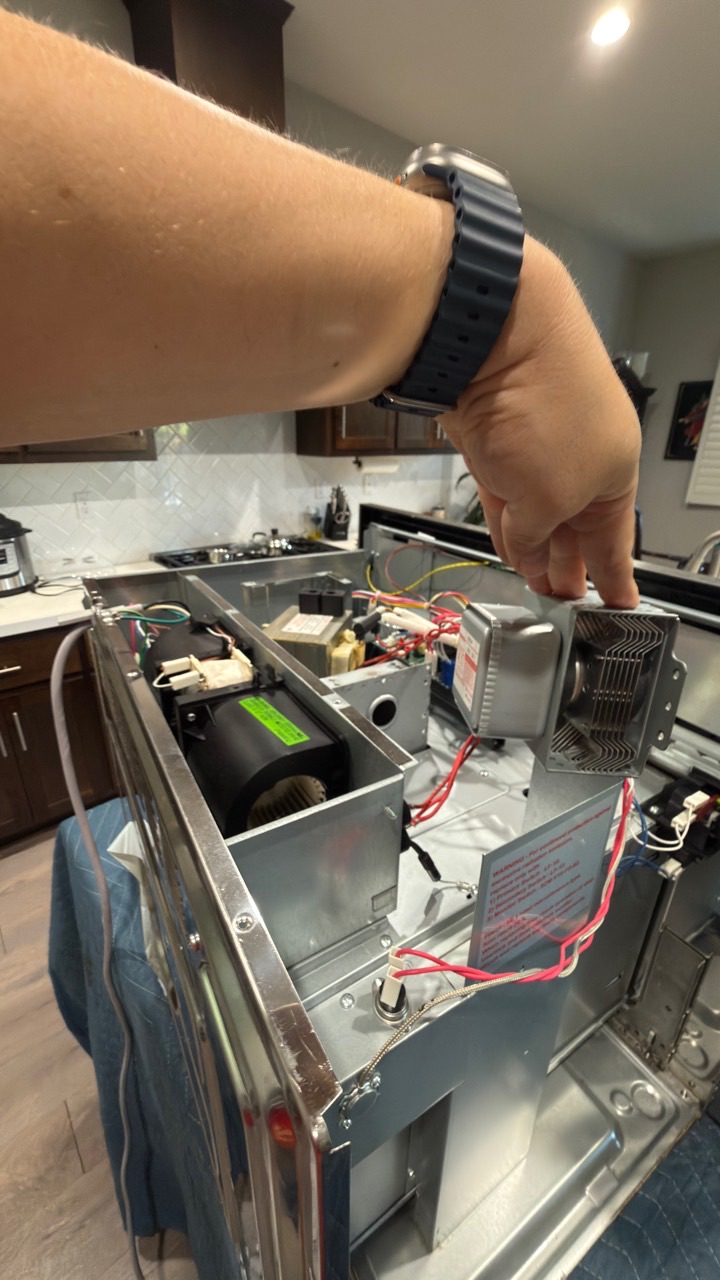

After the compatible replacement arrived, we returned to the Alamo home and carefully pulled the built-in microwave out of its cabinet opening. The outer covers were removed to reach the high-voltage section and magnetron mounting points.

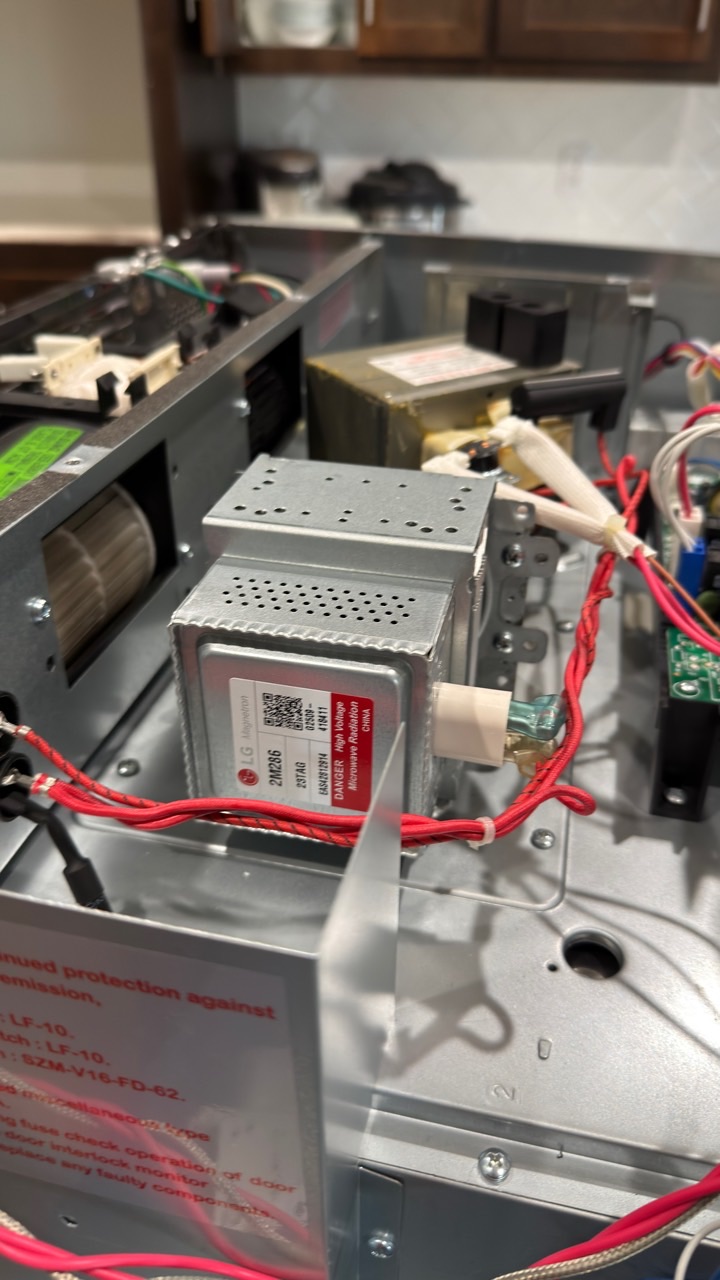

We removed the failed magnetron, installed the replacement component, restored all electrical connections and shielding, and reassembled the microwave before placing it back into the cabinet.

Replacement magnetron markings

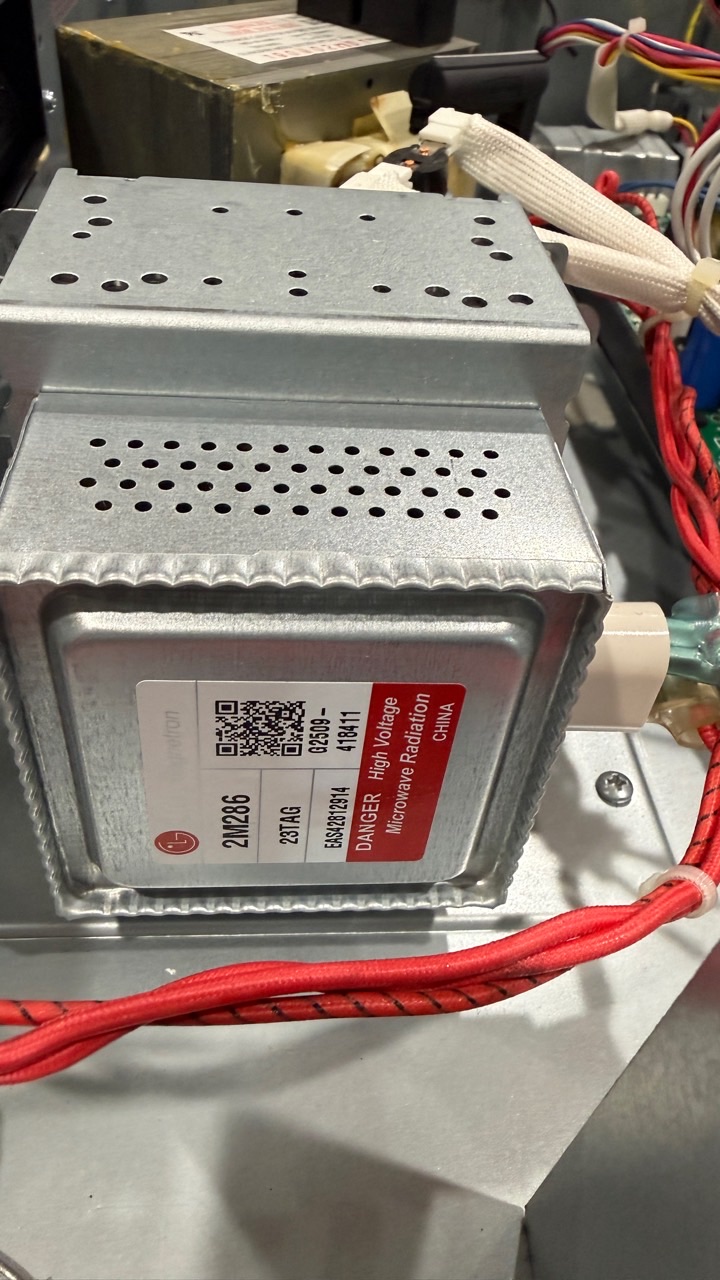

The installed replacement magnetron is marked LG 2M286 and EAS42812914. These are component markings visible on the replacement part; they should not be treated as a universal Thermador service part number. Correct part selection must always be based on the complete appliance model and production information.

Thermador MB30WP/01 model information

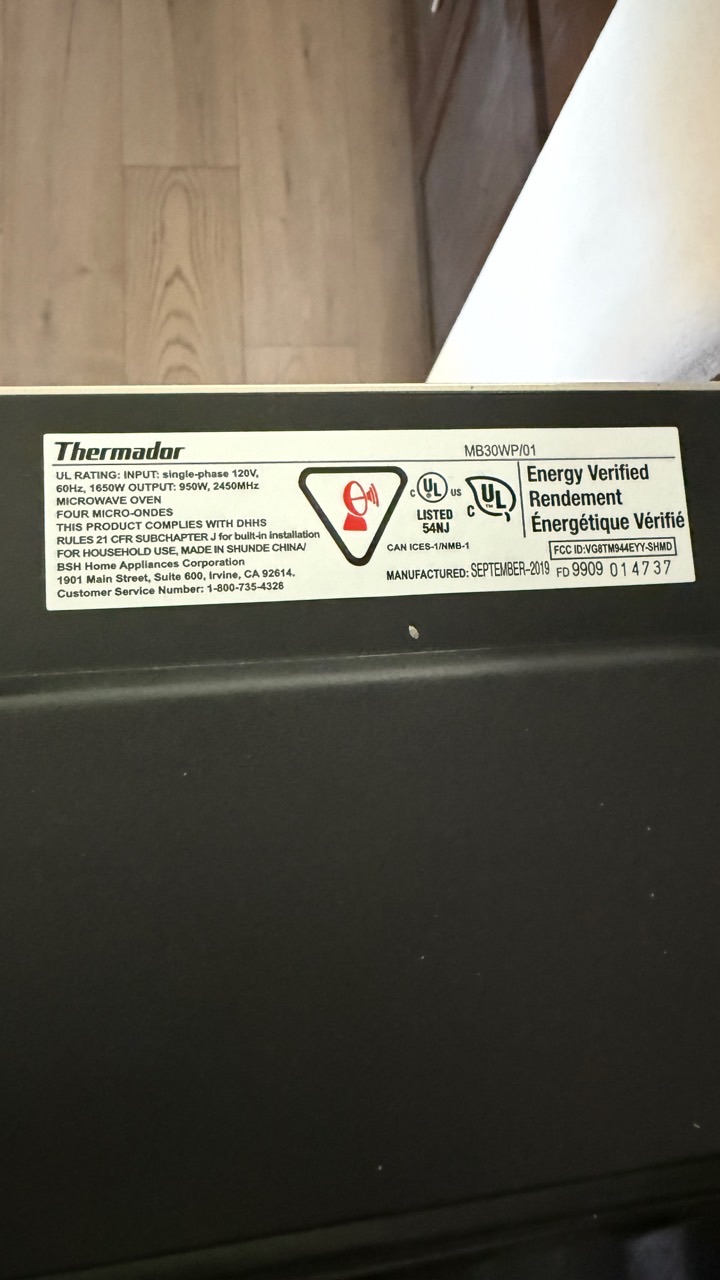

The appliance label identifies this built-in microwave as Thermador model MB30WP/01, with FD 9909 and appliance identification number 014737. This information was used to confirm the compatible magnetron before the return visit.

Final test and result

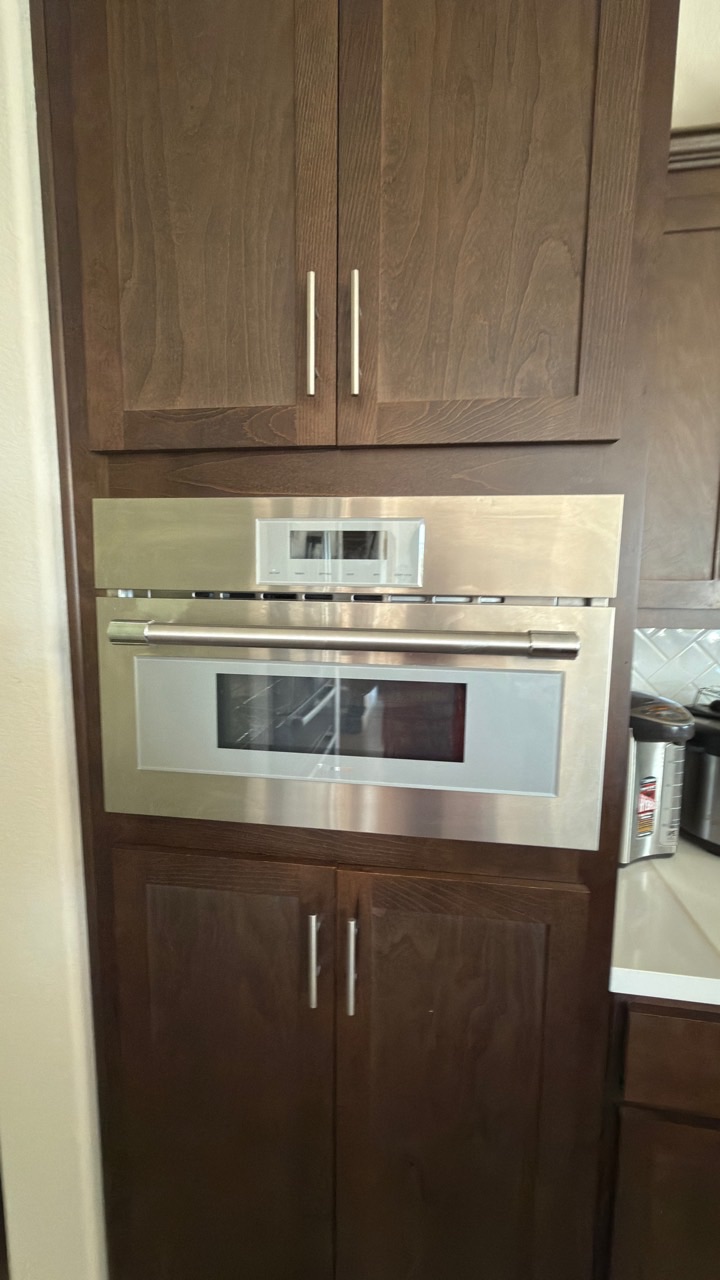

After reassembly and installation, we ran the microwave through a final heating test. The unit operated normally, heated correctly, and no longer produced sparks. The completed microwave was secured back in its original cabinet opening.

Microwave repair in Alamo

24FAR provides local microwave repair in Alamo, appliance repair in Alamo, and microwave repair service for Thermador and other major appliance brands.

Microwave safety: High-voltage microwave components can retain a dangerous electrical charge even after the appliance is unplugged. Do not remove the cabinet or attempt magnetron replacement without professional training and proper safety equipment.

If your built-in microwave is sparking, stop using it and schedule a diagnosis. Book repair online or call (510) 999-6091.
