Whirlpool Dryer Drum Seal Came Loose in Palo Alto: Warranty Diagnostic

Location: Palo Alto, CA

Appliance: Whirlpool electric dryer, model WED4107SW0, serial ME4842017

Replacement parts used: Diagnostic visit only. Rear drum felt seal and dryer-safe adhesive would be needed if the warranty repair is not covered. Part numbers were not visible in the service photos.

Customer complaint: The dryer was not working correctly even though the appliance was nearly new, about three months old.

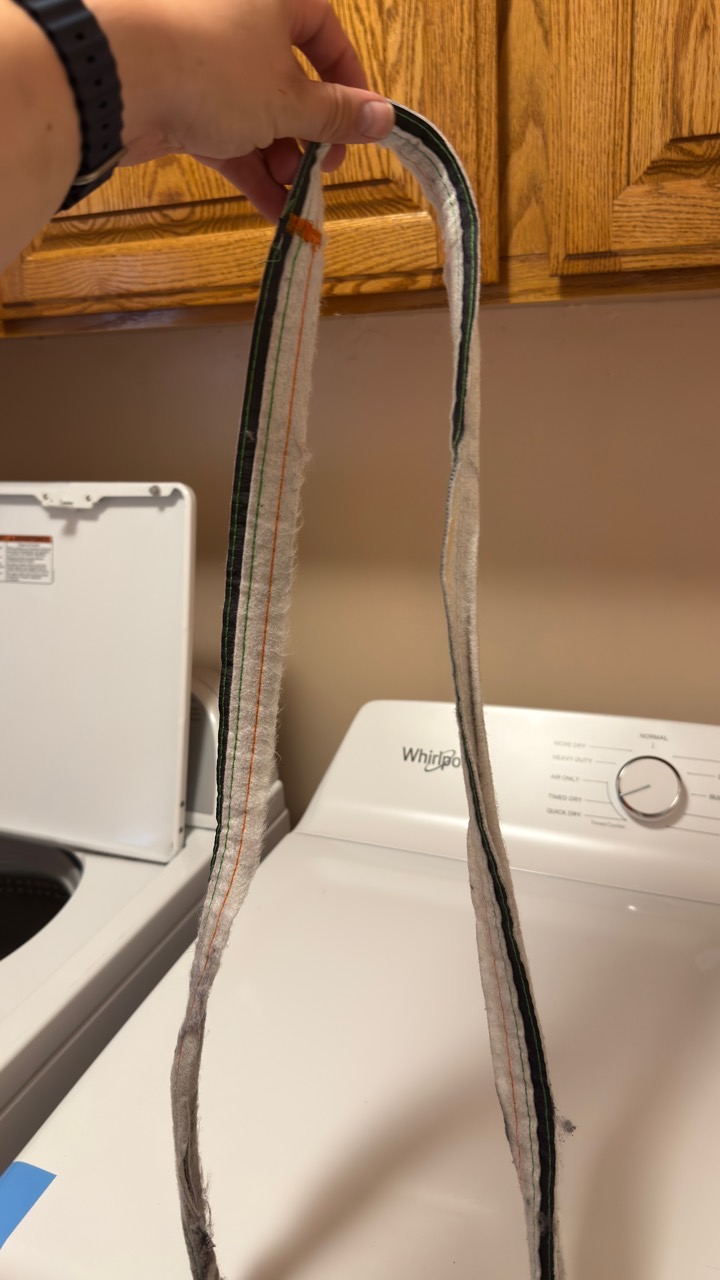

Cause: The rear drum seal had come loose from the drum. The adhesive bond appeared to have failed, allowing the seal to separate from the back side of the drum.

Repair completed: We inspected the dryer, identified the loose rear drum seal, documented the model information, and advised the customer to contact the seller or manufacturer for warranty coverage before paying for a full disassembly and seal repair.

Result: The customer had a clear diagnosis and next step. If the warranty does not resolve it, 24FAR can disassemble the dryer, install a new rear drum seal with proper adhesive, and test the dryer after reassembly.

Diagnosis: Whirlpool dryer drum seal issue in Palo Alto

The customer in Palo Alto called because a Whirlpool dryer was not working correctly. The dryer was nearly new, only about three months old, and the customer reported that it had been purchased from The Home Depot.

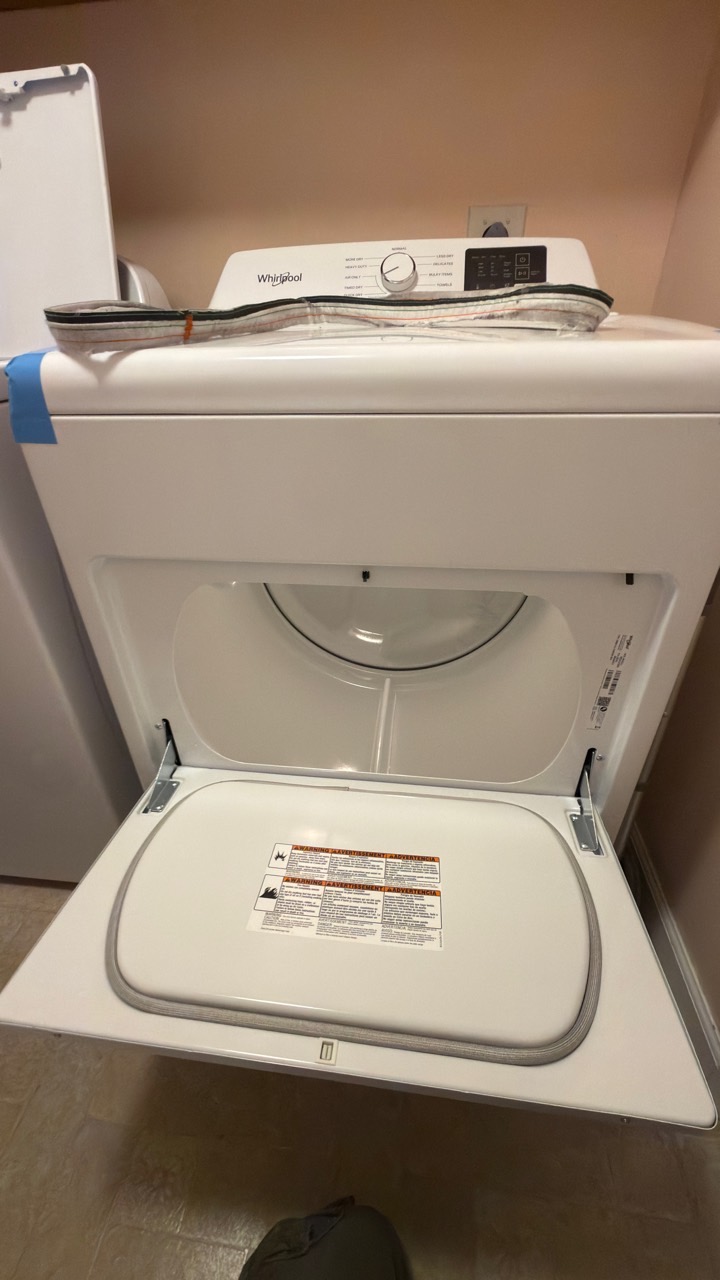

During inspection, we found that the rear drum seal had separated from the dryer drum. This seal should stay attached around the rear edge of the drum to help maintain proper airflow and prevent rubbing or abnormal operation. When it comes loose, the dryer should be inspected before continued use.

What failed on this dryer

The problem was not a normal wear item on an old machine. This dryer was still very new, so a loose rear drum seal this early is not expected. The adhesive bond appeared to have dried out or failed, which allowed the felt seal to pull away from the drum.

Because the appliance was so new, the first step was not to sell the customer a full paid repair. We recommended contacting the seller or manufacturer first to see whether the issue could be handled under warranty.

Model information

The model label identified the appliance as a Whirlpool electric dryer, model WED4107SW0, serial ME4842017, type DWSR-ELE-2406026-IB54. Recording the exact model number matters because the rear drum seal and adhesive repair should be matched to the correct dryer design before disassembly.

Recommended repair plan if warranty is not approved

If the warranty claim does not resolve the issue, the repair plan is to order the correct rear drum felt seal and dryer-safe adhesive, disassemble the dryer, remove the failed seal material, clean the bonding area, glue the new seal in place, reassemble the dryer, and test operation.

This is a repair that needs careful disassembly and the correct adhesive. A loose drum seal can cause airflow problems, rubbing, noise, or additional damage if the dryer is used without correcting the issue.
