Whirlpool Duet Dryer Burning Smell Repair in Union City: Deep Cleaning and Safety Parts

Location: Union City, CA

Appliance: Whirlpool Duet gas dryer, model WGD95HEDC0, serial M50501874, type BALP-NAT-1206006-EL20

Replacement parts used: Two temperature-safety components: the high-limit thermostat and thermal cutoff. Exact service part numbers were not legible in the supplied photos.

Customer complaint: A strong burning smell was coming from inside the dryer during operation.

Diagnosis: The dryer cabinet contained heavy lint, dust, and debris around the burner, motor, blower, and airflow components. The two heat-safety components were also replaced during the service.

Cause: Internal lint accumulation was the source of the burning odor and created an unsafe condition near hot gas-dryer components.

Repair completed: We fully disassembled the dryer, vacuumed and cleaned the interior, replaced the high-limit thermostat and thermal cutoff, reassembled the appliance, and tested operation.

Result: The Whirlpool dryer operated normally after service, the burning smell was gone, and the customer was satisfied with the repair.

Whirlpool dryer burning smell diagnosis in Union City

The customer in Union City called because this Whirlpool Duet gas dryer produced a strong burning odor. A burning smell from a dryer should be investigated promptly because lint can collect near the burner, wiring, motor, blower housing, and exhaust path.

After opening model WGD95HEDC0, we found a substantial amount of lint and debris inside the cabinet. The dryer needed complete disassembly so the burner area, motor, blower, ducts, wiring paths, and cabinet base could be inspected and cleaned.

Full dryer disassembly and lint removal

We removed the drum and opened the cabinet to reach areas that cannot be cleaned through the lint-screen opening. The motor, blower housing, burner tube, cabinet floor, wiring paths, and rear drum support area were vacuumed thoroughly.

This internal service goes beyond emptying the lint filter. Lint that escapes the normal airflow path can settle around mechanical and heating components. Removing it eliminated the source of the odor and made it possible to inspect the dryer before reassembly.

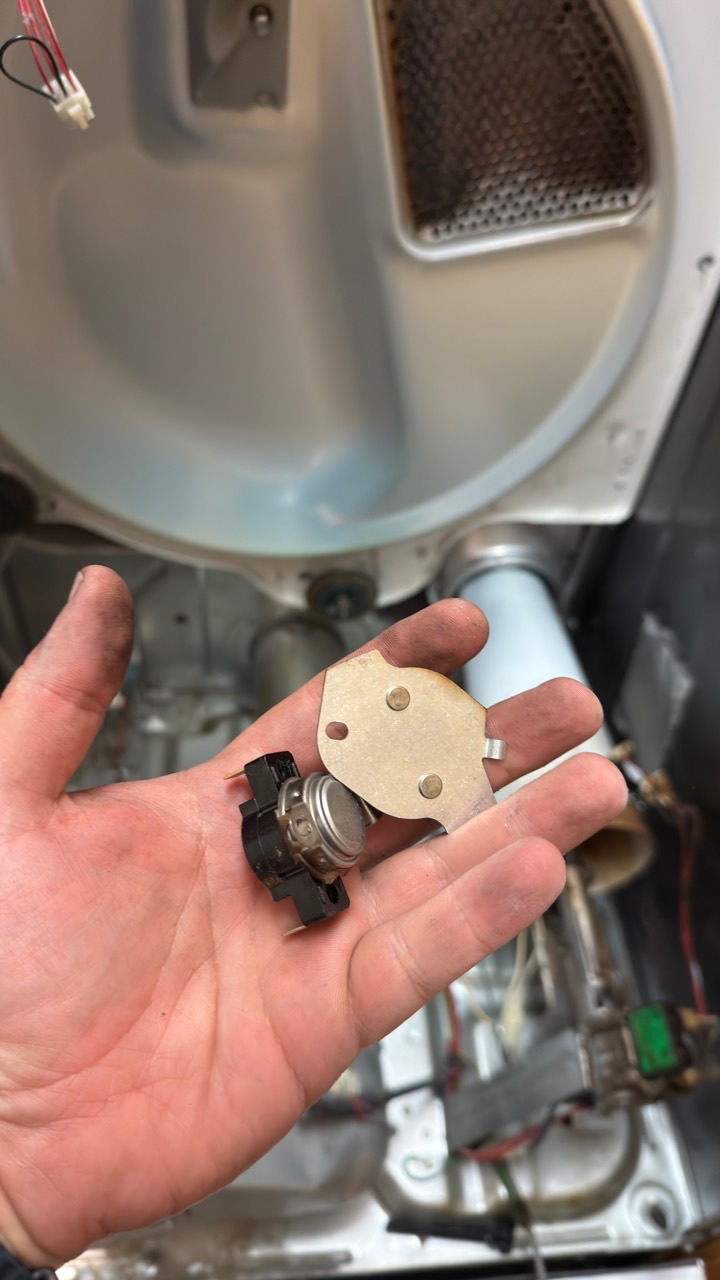

High-limit thermostat and thermal cutoff replacement

We replaced two temperature-safety components during the repair: the high-limit thermostat and thermal cutoff. These parts help protect the dryer when temperatures rise beyond normal operating limits.

The service numbers were not clearly readable in the photos, so replacement parts must be matched to the complete model number WGD95HEDC0 before ordering. The removed components and their burner-area mounting locations were documented during service.

Model and burner component information

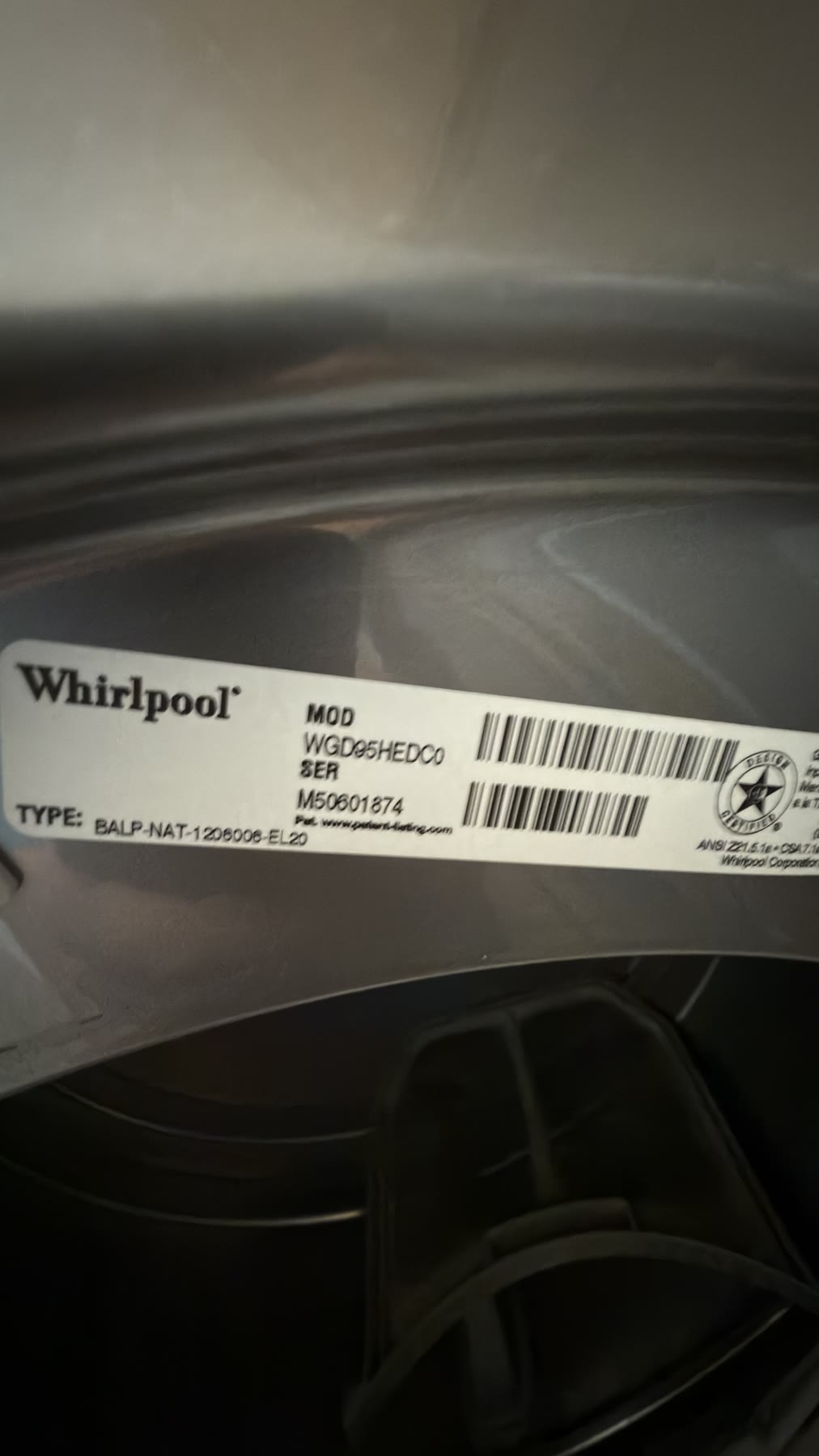

The appliance label identifies this unit as a Whirlpool Duet gas dryer, model WGD95HEDC0, serial M50501874, type BALP-NAT-1206006-EL20. Recording the full model number is important because thermostats, thermal cutoffs, sensors, and other dryer parts can vary by model revision.

The natural-gas valve visible during service was marked SKT 23700/020, 20,000 Btu/hr, 120V, 60Hz. This marking documents the installed burner system; the gas valve was inspected but was not one of the two replacement parts in this case.

Final testing and result

After cleaning the cabinet and replacing the two temperature-safety parts, we reassembled the dryer in the correct sequence and tested its operation. The dryer ran normally, and the burning odor did not return during the final check.

If a dryer smells like burning, stop the cycle and avoid continued use until the appliance and exhaust path can be inspected. The cause may be internal lint, a restricted vent, an overheating motor, damaged wiring, a slipping belt, burner contamination, or a failed temperature-safety component.
