Whirlpool Dryer Would Not Turn On in Alamo: Board, Motor and Heating System Repair

Location: Alamo, CA

Appliance: Whirlpool Duet Sport electric dryer, model WED8300SW0

Replacement parts used: Electronic control board, drive motor, electric heating element, drum support rollers and idler pulley. The damaged rear flexible exhaust connector was also replaced. Exact service part numbers were not readable in the supplied photos.

Customer complaint: The dryer would not turn on.

Diagnosis: The electronic control board was identified as the cause of the no-start condition. With the dryer opened, the technician also documented age and wear in multiple mechanical and heating components, and the customer approved a broader preventive repair.

Cause: A control board problem prevented the dryer from starting. The additional motor, heating and drum-support work was customer-approved renewal work rather than a claim that every replaced component had already failed.

Repair completed: We disassembled the dryer, replaced the electronic control board, drive motor, electric heating element, drum support rollers and idler pulley, replaced the perforated rear exhaust connector, vacuumed accessible lint and dust, and reassembled the machine.

Result: The original no-start symptom was resolved, and the dryer returned to normal operation after reassembly and final testing.

Whirlpool dryer would not turn on in Alamo

A homeowner in Alamo requested service because this Whirlpool Duet Sport electric dryer would not power on. The appliance label identifies the machine as model WED8300SW0; the serial number and barcodes have intentionally not been published.

A dryer that will not start can have several possible causes, including the incoming power supply, door switch, thermal protection, wiring, motor circuit or electronic controls. Diagnosis in this case pointed to the electronic control board as the cause of the no-start condition.

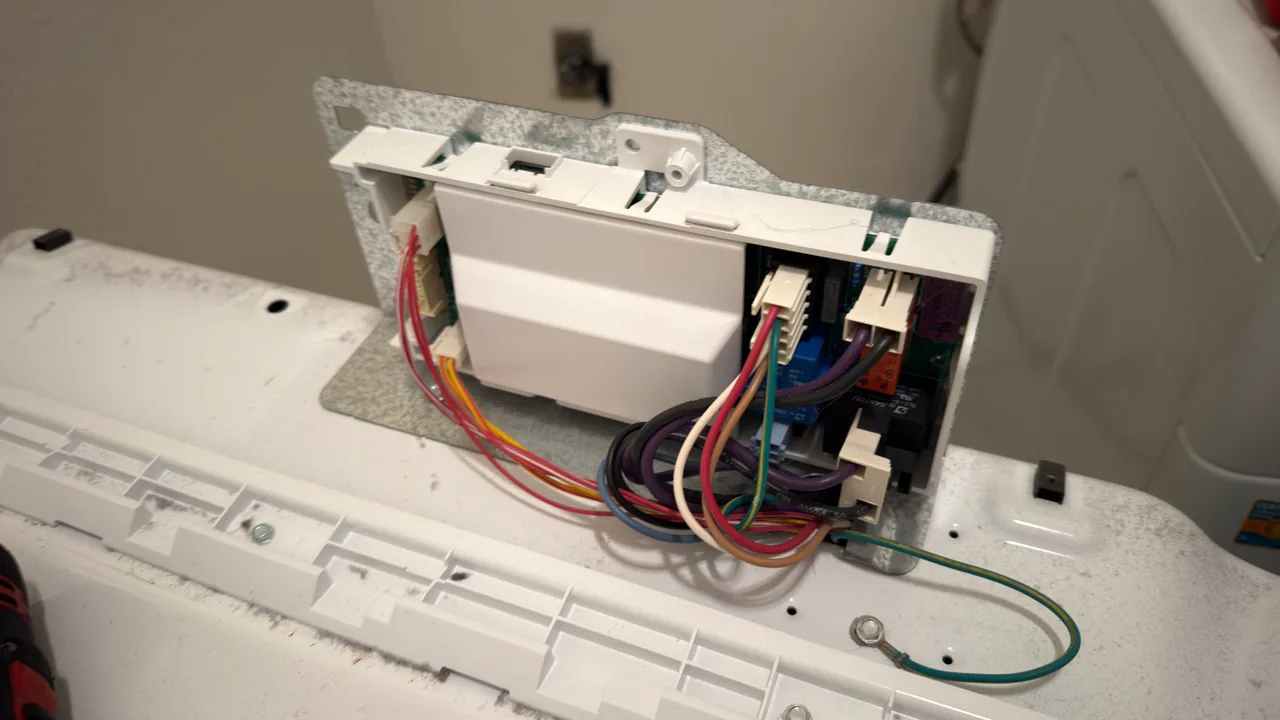

Control board diagnosis and replacement

The electronic control board coordinates the dryer functions and sends power to the operating components. Once the board issue was identified and the repair was approved, the cabinet was opened and the control assembly was accessed for replacement.

Because the dryer was already being disassembled, the customer asked us to inspect the mechanical and heating systems as well. That inspection showed several older high-wear components. Instead of replacing only the board, the customer approved a more complete service intended to reduce near-term wear-related problems.

Drive motor, drum rollers and idler pulley service

The drive motor turns the drum through the belt system. The drum support rollers carry the rotating drum, while the idler pulley maintains correct belt tension. Wear in any of these parts can contribute to noise, resistance, poor drum movement or a future breakdown.

For this customer-approved repair, we replaced the drive motor, drum support rollers and idler pulley. The parts were installed during the same disassembly so the drive system could be returned to service as one coordinated assembly.

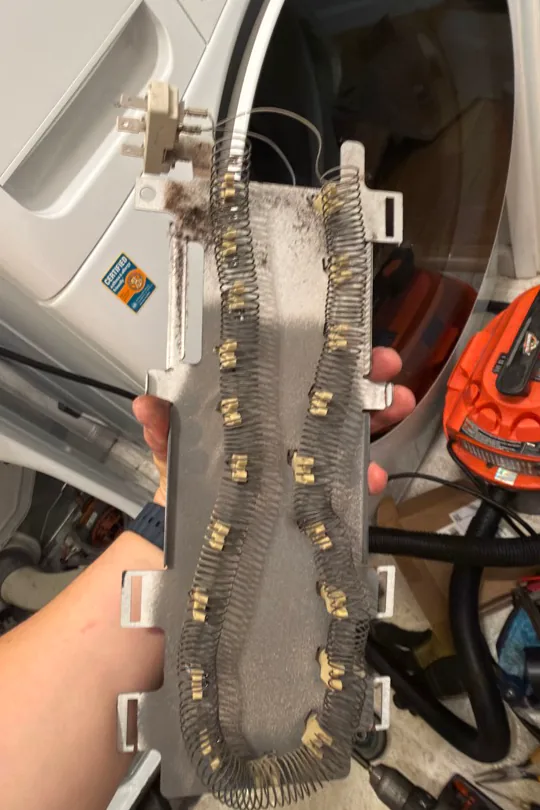

Electric heating element replacement

This Whirlpool model uses an electric heating element inside a metal heater housing. The element and its surrounding airflow path are not visible during normal use, so replacement requires opening the cabinet and safely disconnecting the heater assembly.

The customer elected to replace the older heating element during the broader service. The heater housing, wiring connections and accessible airflow path were checked before the dryer was reassembled.

Damaged exhaust connector and internal lint cleanup

The flexible exhaust connector behind the dryer had holes and was replaced. A damaged connector can release warm, lint-carrying air into the laundry area instead of directing it through the intended exhaust path.

With the drum and internal assemblies removed, we vacuumed accessible lint, dust and debris from the cabinet and internal airflow areas. This cleaning was limited to the accessible dryer cabinet and connector shown during the service; it should not be confused with cleaning an entire household vent line to the exterior.

Why the customer repaired instead of replacing the dryer

Replacing several major service components can be a practical alternative to buying a new appliance when the cabinet and remaining systems are still serviceable. In this case, the customer chose to invest in the existing Whirlpool dryer rather than replace the entire machine.

The broader repair was intended to extend the dryer's useful service life and reduce the likelihood of near-term wear-related work. No repair can guarantee a specific number of additional years because future life depends on usage, maintenance, household venting and the condition of components that were not replaced.

Final result and optional service coverage

After the board, motor, heating element, rollers, idler pulley and rear exhaust connector were installed, the dryer was reassembled and tested. The machine powered on and returned to normal operation without the original no-start symptom.

For this completed repair, the customer also selected optional service coverage lasting one year from the effective date stated in the written agreement. Coverage for that specific job is governed by the terms provided to the customer, including covered components, exclusions, claim procedure and effective dates.
